Intelligent Access
Brose’s success story began with the “crank drive for retractable windows". Today, we are the world market leader in the development and production of mechatronic systems for vehicle doors and tailgates. In the vehicle exterior sector, Brose stands for comfort and safety. We have transferred this expertise to side doors, enabling a new comfort experience when entering a vehicle. Our wide-ranging portfolio includes all necessary components – from the electrically opening lock and side door drive to the electronics and sensors for collision and pinch protection.
Door system with plastic carrier plate
- Scalable product and integration scopes (window regulator rails, soundbox, fasteners)
- Carriers available in fiber-reinforced plastics
- Endless fiber-reinforced plastics reduce weight in the vehicle and have a positive effect on crash behavior in the door
Compact module
- Plastic window regulator with wet-dry room seperation function as a module
- Weight savings of up to 2 kg per vehicle compared to conventional component design
- Integration of interfaces for further components such as loudspeaker, crash sensor and door control unit possible
Window regulator drive with integrated electronics
- Scalable electronic functional scope at different levels, e.g. sensors, auto-down, anti-trap feature, PWM control
- Variants from 8 to 14 Nm for wet and dry side applications
- Weight from 270 g
Cable window regulator
- Single or double-guided window regulator with steel, aluminum or plastic guide rails
- Short development times thanks to high degree of standardization
- Modular solutions for customer-oriented setting concepts for window regulators for frameless doors
Door control unit
- Control of drives for window regulators with anti-trap feature, side mirror and latch
- Control with standardized interfaces to the window regulator drive
- Control of side door drives
- CAN or LIN interface
Latch module
- Integrated system for optimal function
- Integration of additional functions such as window guides and theft-protection
- All components in a pre-tested, ready-to-fit delivery unit
- Door assembly therefore reduced by 90 seconds compared to installation of components
Unilatch® II side door closure system
- 60 g weight saving compared to previous generation
- Optimized for high-volume production and global usage
- Insusceptible to environmental influences
- Further development of the proven spring clutch
Power liftgate drive
- Modular principle for high robustness in all models and load ranges
- Design as a one or two-sided spindle drive or push rod possible
- Installation in the rainwater duct or under the roof
- Integration of brake and overload clutch possible
- Noise level below 45 dB(A)
- Mechanical power from 33 to 43 W
Deck lid tension spring drive
- Utilization of standard components for cost savings
- Modular kit approach for high robustness and flexibility
- Small package
- Design with internal torque support
- Plug & Play solution for manual decklids
Capacitive sensor system for hands-free opening and closing
- Very low standby current consumption under 170 μA
- New, more compact generation of electronics with sensor chip for improved sensitivity and same level of insusceptibility to environmental influences
- High robustness through the use of standardized components
Liftgate latch with power cinching unit
- Best opening acoustics achieved through gearless power opening with cord actuator
- Up to 150 g weight savings per door compared to competitors
- Function and package space requirements customizable
Power liftgate drive with additional functions
- The Brose system comprises:
- (1) liftgate drive
- (2) sensors
- (3) latch with (4) power cinching unit
- (5) control unit
- (6) obstacle detection sensor

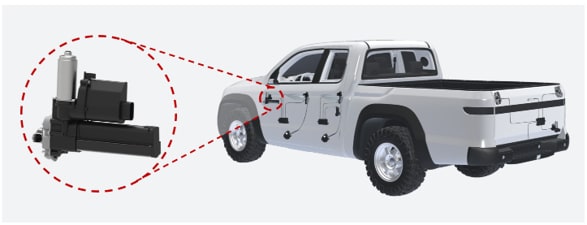

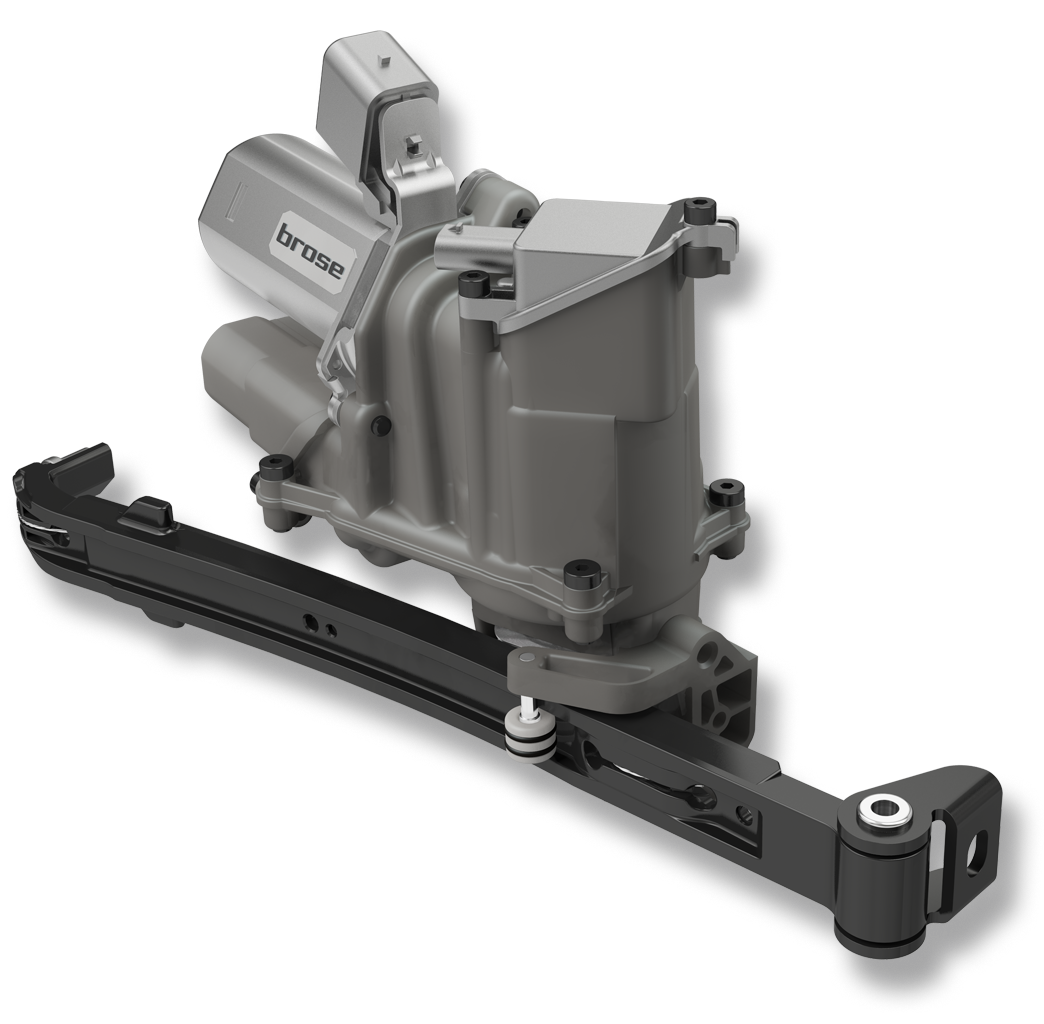

Side door drive
- Power opening and closing of even heavy doors in angled positions and on slopes
- Integrated variable door check with zero-current brake
- Attached to conventional structural interfaces, can thereby be offered as an optional feature
- Modular design for flexible use and shorter development periods

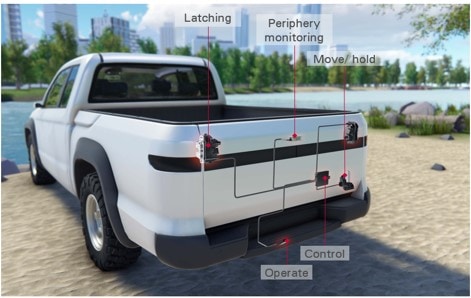

Side door drive with additional functions
- The Brose system comprises:
- (1) drive
- (2) obstacle detection sensor
- (3) periphery monitoring radar sensor
- (4) control unit
- (5) open-by-wire latch with (6) power cinching unit
